Description

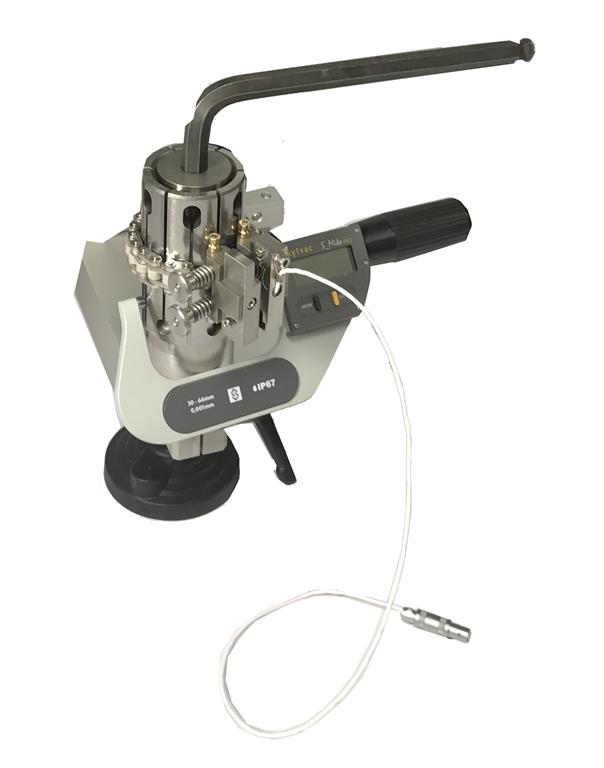

The CEC-series is designed to calibrate circumferential extensometers, offering corrections for sensor non-linearity and repeatability. Comprising an expandable hub and a micrometer tailored for specific diameters, this calibration tool provides precise measurement of absolute displacements down to an exceptional 0.001 mm resolution. Equipped with a digital indicator, the device can display measurements in both SI and imperial units. Multiple models are available to accommodate a range of specimen diameters.
Specifications
|
Standard:
|
ASTM E83 & F2537
|
|
Diameter range | from 25-mm to 100-mm |
|
Resolution:
|
0.001 mm (0.000050 inch)
|
|
Weight:
|
1 kg
|
|
Dimensions:
|
5 x 5 x 7 cm
|
Benefits
Easy to use
Accommodate different circumferential extensometer diameter
ASTM compliant
