Description

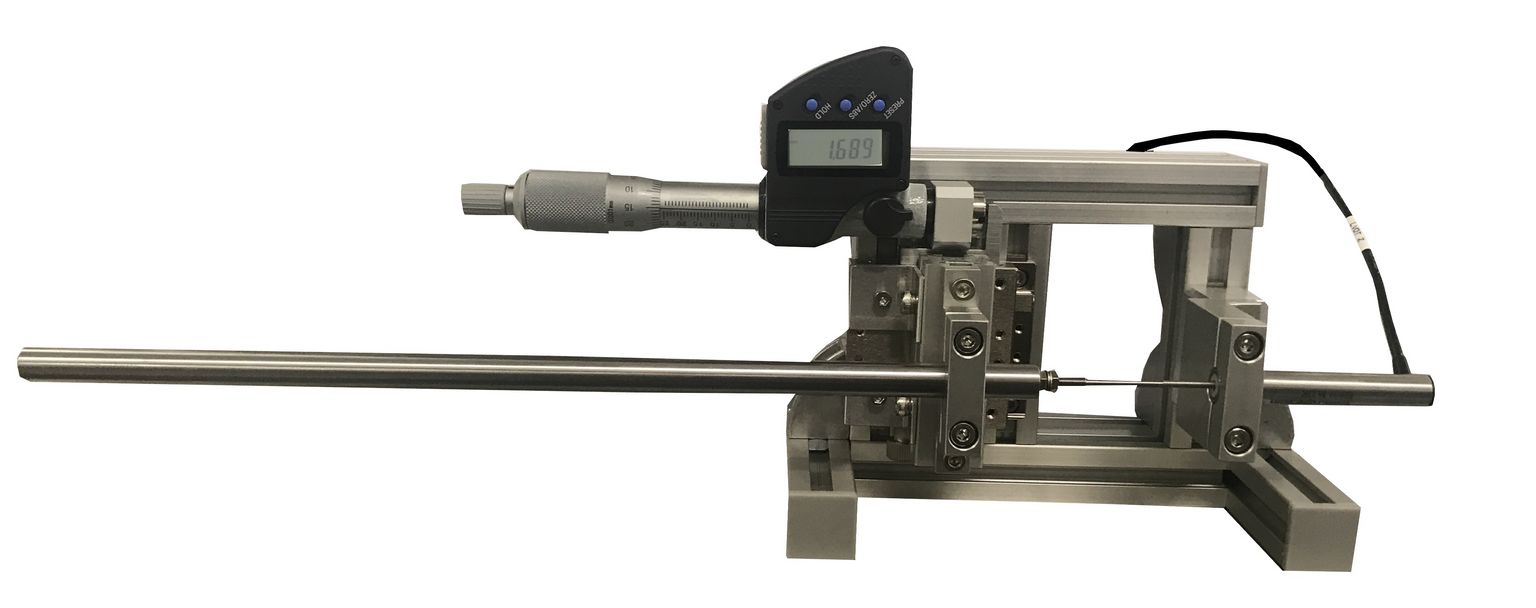

The LVDT calibration instrument is designed to calibrate both LVDT transducers and diametral extensometers, addressing issues related to sensor non-linearity and repeatability. This versatile tool can accommodate a broad spectrum of LVDT transducers and offers a high-precision 0.001-mm resolution for measuring either absolute or relative displacements. A digital display is featured on the device, capable of reporting measurements in both SI and imperial units. Additionally, the tool includes an adjustable mounting bracket, allowing for the calibration of transducers of varying sizes. The standard configuration is compatible with sensors having body diameters of 3/8”, 3/4", and 7/8”. Custom dimensions are also available upon request.
Specifications
|
Standard:
|
ASTM E83 & F2537
|
|
Travel range: | 10-mm |
|
Resolution:
|
0.001 mm (0.000050 inch)
|
|
Weight:
|
1 kg
|
|
Dimensions:
|
10 x 10 x25 cm
|
Benefits
Easy to use
Accommodate different LVDT sensors
ASTM compliant
