Description

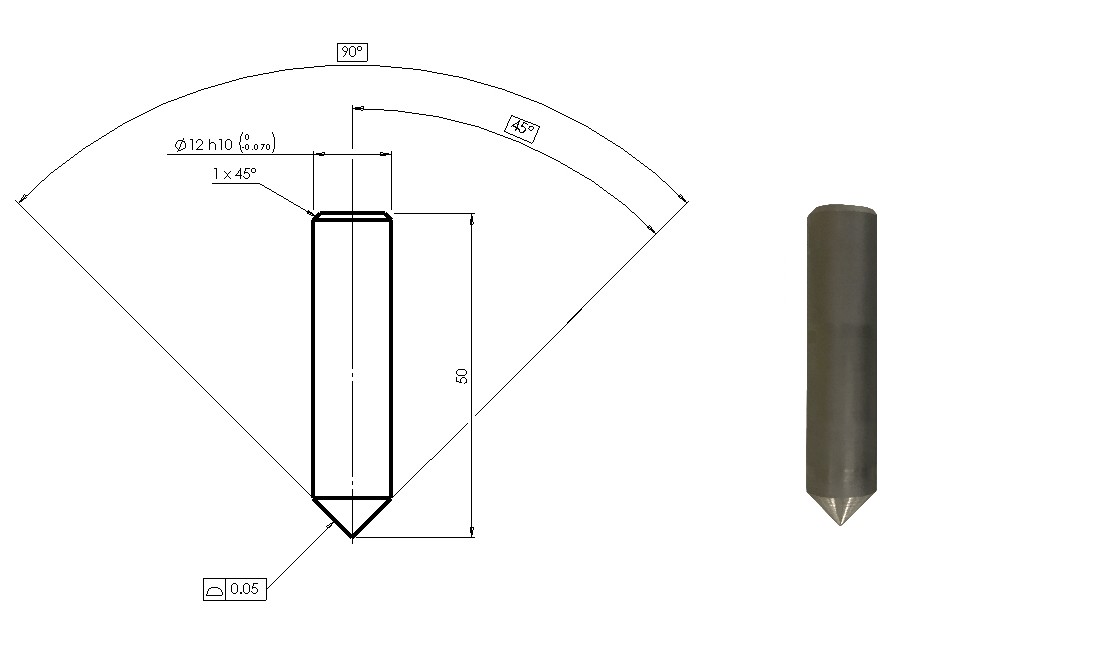

The indenter functions as the stylus pin in both the original and west Cerchar abrasivity index testers. It's designed in accordance with the ASTM D7625 method for assessing rock abrasiveness. The tip of the test pin features a conical angle of 90°, and typically, it lasts for approximately 10 tests per unit.
Specifications
|
Standard
|
ASTM D7625-10.
|
|
Diameter
|
12-mm
|
|
Length
|
50-mm
|
|
Cone
|
90°
|
|
Rockwell hardness | HRC 54/56 (200 DaN/mm2)
|
Benefits
ASTM-compliant, original version
Fast delivery
