Description

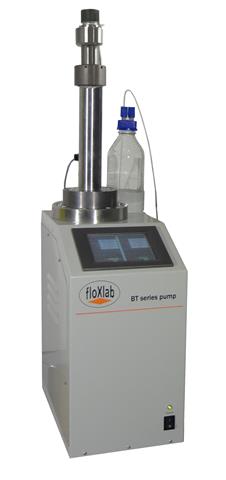

The BTSP and BTDP-series pumps offer an optional magnetically-driven stirrer for comprehensive, in-situ fluid mixing across a wide range of operating pressures and temperatures. The stirring mechanism consists of a permanent magnet, which is actuated by a variable-speed DC motor and is affixed through the pump cylinder's end cap. A dedicated controller unit provides functionalities for initiating, halting, and modulating the stirrer's rotational speed, which can reach up to 1,500 RPM.
Specifications
|
Pressure range
|
10,000 / 15,000 / 20,000 psi
|
|
Volume
|
250 / 175 / 125 ml
|
|
Wetted materials
|
Stainless Steel
|
|
Temperature
|
ambient to 150°C (300F)
|
|
Type of fluids
|
hydraulic fluid
|
|
Maximum speed
|
up to 1,500 RPM
|
|
Power supply requirement
|
110-220 VAC, 50/60 Hz
|
|
Pressure control interface
|
Ethernet
|
Benefits
Very efficient mixing
Can be used with viscous fluid and slurries
